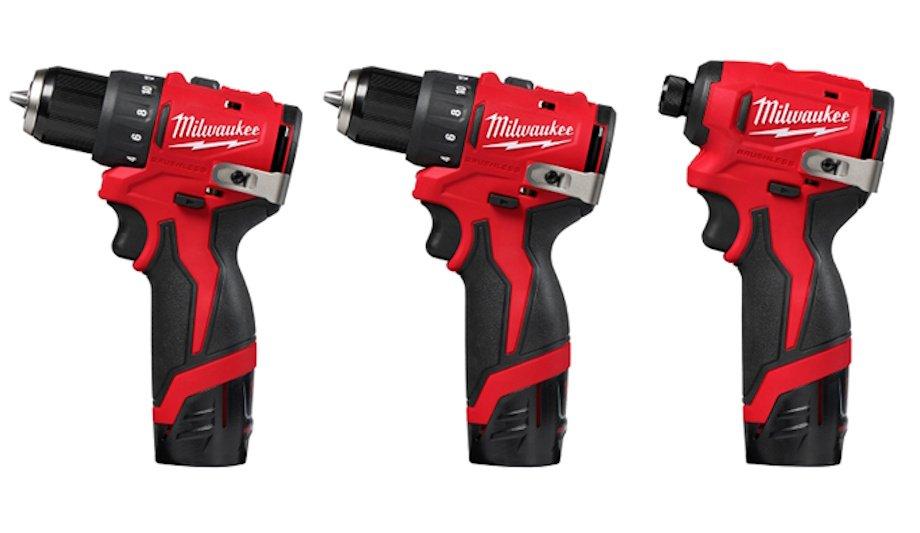

MILWAUKEE® continues to deliver innovation in the compact drilling and driving class with the introduction of the new M12™ Compact Brushless Percussion Drill, M12™ Compact Brushless Drill Driver, and M12™ Compact Brushless Impact Driver.
The M12™ Compact Brushless Percussion Drill, M12™ Compact Brushless Drill Driver, and M12™ Compact Brushless Impact Driver deliver performance for the Service Trades, as well as Carpenters, MRO, and HVAC Technicians.
Optimal tool performance
Increased drilling capability in high-speed mode delivers power to complete the most common tasks
The brushless motor delivers optimal tool performance, providing professionals with faster application speed compared to the current brushed products, to get the job done quickly.
Increased drilling capability in high-speed mode delivers power to complete the most common tasks. Additionally, users will see increased fastening torque to meet the demands of the professional.
M12™ Cordless System
All have an extremely compact design with 137 mm in length for the M12™ Compact Brushless Drill Driver, 142 mm in length for the M12™ Compact Brushless Percussion Drill, both with 40 Nm of torque, and only 109 mm for the M12™ Compact Brushless Impact Driver with 124 Nm of torque. They are perfect for use in tight spaces or overhead and provide the best power-to-size ratio.
The new join the M12™ Cordless System is focused on delivering industry-renowned durability and power in the tightest spaces. Currently, the M12™ System is made up of more than 120 solutions.
new M12™ Compact Brushless Percussion Drill
MILWAUKEE® is saved to improving productivity by providing performance-driven and trade-focused keys
MILWAUKEE® is committed to improving productivity by providing performance driven and trade focused solutions so users can perform an entire day’s work on one battery system.
The new M12™ Compact Brushless Percussion Drill, M12™ Compact Brushless Drill Driver, and M12™ Compact Brushless Impact Driver are fully compatible with the entire M12™ line, now offering more than 120 power tool solutions.
Specifications
M12™ Compact Brushless Percussion Drill
M12 BLPDRC-402C
- Battery Type: Lithium-ion
- Battery System: M12™
- Chuck Capacity: 10 mm
- Max. Drilling:
- Masonry: 10 mm
- Steel: 10 mm
- Max. Drilling Wood with
- Auger Bit: 10 mm
- Holesaw: 40 mm
- Selfeed Bit: 32 mm
- Max. Percussion Rate: 0 – 23,250 bpm
- Max. Torque: 40 Nm
- No Load Speed
- Gear 1: 0 – 470 rpm
- Gear 2: 0 -1,550 rpm
- Wood screws to: 6x125 mm
- Weight with Battery Pack (EPTA): 1.1 kg (M12 B4)
Kit Includes: (1) M12™ Compact Brushless Percussion Drill, (2) M12 B4 Battery packs, (1) C12 C Charger, (1) Hard case
M12™ Compact Brushless Drill Driver
M12 BLDDRC-402C
- Battery Type: Lithium-ion
- Battery System: M12™
- Chuck Capacity: 10 mm
- Max. Drilling
- Aluminium/Wood: 40 mm
- Steel: 10 mm
- Max. Drilling Wood with
- Holesaw: 40 mm
- Selfeed Bit: 32 mm
- Max. Torque: 40 Nm
- No Load Speed
- Gear 1: 0 – 450 rpm
- Gear 2: 0 -1,550 rpm
- 2 Speed Settings
- Wood screws to: 6x125 mm
- Weight with Battery Pack (EPTA): 1.1 kg (M12 B4)
Kit Includes: (1) M12™ Compact Brushless Drill Driver, (2) M12 B4 Battery packs, (1) C12 C Charger, (1) Kitbox
M12™ Compact Brushless Impact Driver
M12 BLIDRC-202C
- Battery Type: Lithium-ion
- Battery System: M12™
- Impact rate: 0 – 4000 ipm
- Max. Torque: 124 Nm
- No Load Speed: 3000 rpm
- Wood screws to: 6x125 mm
- Weight with Battery Pack (EPTA): 0.78 kg (M12 B2)
Kit Includes: (1) M12™ Compact Brushless Impact Driver, (2) M12 B2 Battery packs, (1) C12 C Charger, (1) Hard case
