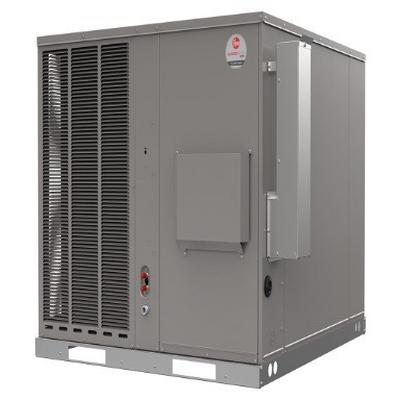

Rheem RGEAYC036ACV Packaged Unit

Technical Specification

Features:

Make: Rheem
Model code: RGEAYC036ACV
Series: RGE(A/X)YC
Power: 30,000 ~ 40,000 BTU/H
Electrical: 208-230/3/60 V/phase/Hz

Additional info:

Cooling Efficiency: 15.2 SEER2/11.5 EER2 Heating Efficiency: 81% AFUE6 Refrigerant Type: R-454B Nominal Sizes 2 to 5 Tons [7.0 – 17.6 kW] Rated Cooling Capacities: 22.8 to 56 kBTU EcoNet® Enabled: Yes Compressor Type: Two-Stage Scroll Evaporator Coil Type: MicroChannel Condenser Coil Type: MicroChannel Airflow Type: Convertible Blower Motor Type: Constant CFM Ultra Low NOx Option: No Low NOx Option: Yes 1-Phase Option: Yes 3-Phase Option: Yes Stainless Steel Heat Exchanger: Yes

Contact manufacturer Contact manufacturer

Make	Rheem
Manufacturer	Rheem Manufacturing
Category	Cooling>Packaged Units/RTU
Model code	RGEAYC036ACV
Series	RGE(A/X)YC
Power	30,000 ~ 40,000 BTU/H
Electrical	208-230/3/60 V/phase/Hz
Weight	450 lbs
Dimensions	Height: 41 inches Width: 47 9/16 inches Depth: 50 13/16 inches
Additional info	Cooling Efficiency: 15.2 SEER2/11.5 EER2 Heating Efficiency: 81% AFUE6 Refrigerant Type: R-454B Nominal Sizes 2 to 5 Tons [7.0 – 17.6 kW] Rated Cooling Capacities: 22.8 to 56 kBTU EcoNet® Enabled: Yes Compressor Type: Two-Stage Scroll Evaporator Coil Type: MicroChannel Condenser Coil Type: MicroChannel Airflow Type: Convertible Blower Motor Type: Constant CFM Ultra Low NOx Option: No Low NOx Option: Yes 1-Phase Option: Yes 3-Phase Option: Yes Stainless Steel Heat Exchanger: Yes
