Airedale International’s design engineers, service and controls experts formed part of a multi-disciplinary team managing a complex chiller design, manufacture and installation project involving two 40-minute helicopter lift operations onto the roof of the London offices of a global professional services firm.

The team, comprising Norland Managed Services, Plant Movements and Helirig, called for high performance chiller design combined with meticulous planning to minimize disruption to business operations and manage risk during installation in the pedestrianized location close to other high rise buildings and important historic monuments. “Planned to perfection,” said James Buchan, Lead Project Manager, Norland.

Airedale Solutions used

  • 8 x 405-778kW TurboChill™ extra quiet air cooled single circuit chillers (405kW, 630kW, 743kW & 778kW)
  • Low noise solution featuring specially designed acoustic compressor enclosure and base panels
  • Design and manufacture to meet complex logistical and stringent health and safety requirements
  • Airedale chiller sequence manager
  • Airedale ChillerGuard™ service & maintenance

Energy efficiency standards

Eight Airedale TurboChill™ chillers were designed and manufactured in a total of 18 separate component parts

The original chillers, which were approaching end-of-life, were dismantled and removed via the building in two phases to allow time for new concrete plinths, pipework and power supplies to be installed whilst maintaining 100% business continuity. Eight Airedale TurboChill™ chillers were designed and manufactured in a total of 18 separate component parts to meet the 3.2 tonne weight limit per section.

Further design considerations needed to take into account health & safety requirements and the need for rapid assembly and connection whilst maintaining Airedale’s highest quality and energy efficiency standards in chiller design. Once delivered to site, the chillers were positioned on aluminum track way laid to protect the paving before being airlifted onto the limited roof space in predetermined order to simplify assembly and connection by Airedale’s specialist site team.

Early morning operations

The chillers were fitted with removable lifting lugs and guide plates to ensure the units could be lowered into the exact position required. Robust and comprehensive test lifts were conducted at Airedale’s Leeds manufacturing site as part of the design process to anticipate and exceed the requirements of the operation.

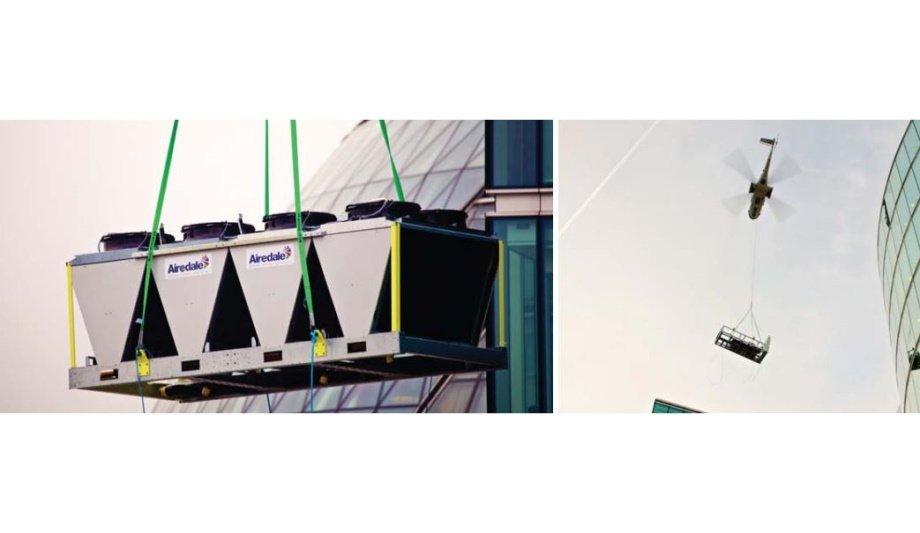

Further design adaptions, including rationalization of pipework connections, meant that the units could be reassembled on the roof with 50% less manpower and within a rapid timeframe of just one week of each airlift operation. As the location was unsuitable for a crane, a Super Puma helicopter was drafted in. The two early morning operations which were capped at nine individual lifts per operation were successfully carried out in less than one hour each and involved working closely with the Civil Aviation Authority (CAA), police, local authority, environmental health and estate owners.

fan air cooled chillers

The TurboChill’s modular ‘V’ frame coil arrangement (patent pending) vastly improves heat exchange

A total of eight Airedale TurboChill™ 8, 10 & 12 fan air cooled chillers were designed and manufactured in modular form to meet the 3.2 tonne lifting capacity of the Super Puma. The chillers which offer annual operational cost savings of up to 23% were selected for their energy-saving properties and ease of maintenance, and were supplied with specially designed acoustic packs to ensure they meet stringent local authority noise restrictions associated with the building’s proximity to other offices and hotels.

The TurboChill’s modular ‘V’ frame coil arrangement (patent pending) vastly improves heat exchange, increasing performance and control particularly at part-load, and facilitates maintenance. The large surface areas of the polymer-coated micro channel heat exchangers increase cooling capacity and reduce condensing temperatures within a smaller footprint.

Variable speed control

The TurboChill’s oil-free centrifugal compressors provide very precise variable speed control between 15-100% for tighter water set point management which minimizes power consumption with near silent operation. An Airedale chiller sequence manager maximizes the TurboChill’s part-load efficiencies and ensures even wear of components.

Benefits of Airedale solution are as follows:

  • Collaborative, fully managed service
  • Rapid 15 week completion for each operation from receipt of order to on-site installation and commissioning
  • Up to 23% savings on running costs
  • Class A EER up to 4.35 (at 7/12°C water and 35°C ambient)
